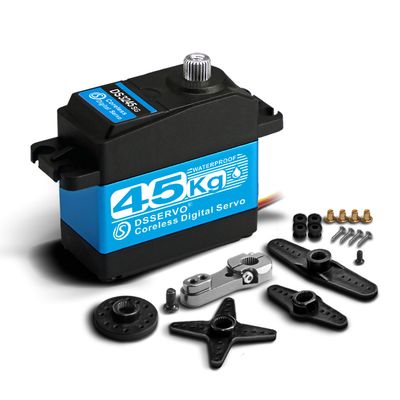

Name: Dsservo DS3245MG Hollow Cup High Torque Digital Servo For FPV Racing drone
Brand: SHENZHEN KLESMAN TECHNOLOGY CO LTD
SKU: KL-45KG
Price: 22 USD
Availability: InStock

MOQ:	10 unidades
preço:	22USD
standard packaging:	15cm15cm8cm
Delivery period:	5-8 dias
Método do pagamento:	T/T
Supply Capacity:	100 PCS/H

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem

China

Marca

Dsservo

Certificação

Número do modelo

KL-45KG

Nome do produto:

Servo Digital 45KG

Quantidade mínima:

10 unidades

Aplicação:

RC/FPV

Função:

Transmissão de sinal

Peso:

0.5g (apenas receptor)

Quantidade de ordem mínima:

10 unidades

Preço:

22USD

Detalhes da embalagem:

15cm*15cm*8cm

Tempo de entrega:

5-8 dias

Termos de pagamento:

T/T

Habilidade da fonte:

100 PCS/H

Destacar:

FPV racing drone digital servo

hollow cup high torque servo

DS3245MG servo for drone

Descrição do produto

Dsservo DS3245MG Hollow Cup High Torque Digital Servo For FPV Racing drone

Product Description:

Apply Environmental Condition

No.	Item	Specification
1-1	Storage Temperature Range	-55℃～80℃
1-2	Operating Temperature Range	-50℃～70℃
1-3	Operating Voltage Range	5-8.4V

Mechanical Specification

No.	Item	Specification
2-1	Size	402038.5mm
2-2	Weight	60g
2-3	Gear ratio	342
2-4	Bearing	Double bearing
2-5	Connector wire	300±5mm
2-6	马达 Motor	Coreless motor
2-7	防水性能Waterproof performance	IP66

Detailed pictures:

Electrical Specification

No.	Operating Voltage	5V	6V	7.4V	8.4V
3-1	Idle current(at stopped)	5mA	5mA	5mA	5mA
3-2	Operating speed (at no load)	0.18 sec/60°	0.15 sec/60°	0.13 sec/60°	0.11 sec/60°
3-3	Stall torque (at locked)	35 kg-cm	40 kg-cm	46 kg-cm	51 kg-cm
3-4	Stall current (at locked)	3.5A	4.2 A	5.2 A	5.8A

Control Specification

No.	Item	Specification
4-1	Control System	PWM(Pulse width modification)
4-2	Pulse width range	500～2500µsec
4-3	Neutral position	1500µsec
4-4	Running degree	180° or 270° (when 500～2500 μ sec)
4-5	Dead band width	2 µsec
4-6	Operating frequency	50-330Hz
4-7	Rotating direction	Counterclockwise (when 500～2500 µsec)

About PWM Control:

Dsservo DS3245MG Hollow Cup High Torque Digital Servo For FPV Racing drone 0

Packing and Shipping:

FAQ:

What is the brand name of this FPV Drone Accessory?

The brand name of this FPV Drone Accessory is Klesman.

What is the model number of this FPV Drone Accessory?

The model number of this FPV Drone Accessory is Model Number.

Where is this FPV Drone Accessory made?

This FPV Drone Accessory is made in China.

Is this FPV Drone Accessory CE certified?

Yes, this FPV Drone Accessory is CE certified.

What is the minimum order quantity for this FPV Drone Accessory?

The minimum order quantity for this FPV Drone Accessory is 20 pieces.

How much does this FPV Drone Accessory cost?

This FPV Drone Accessory costs 32 USD.

What are the packaging details of this FPV Drone Accessory?

The packaging details of this FPV Drone Accessory are 15cm*15cm*8cm.

What is the delivery time for this FPV Drone Accessory?

The delivery time for this FPV Drone Accessory is 5-8 days.

What are the payment terms for this FPV Drone Accessory?

The payment terms for this FPV Drone Accessory are T/T.

10.

What is the supply ability of this FPV Drone Accessory?

The supply ability of this FPV Drone Accessory is 100 pieces per hour.
